C-Tick Explosion Proof Led Lights Atex 11600lm Emergency Led Light

Product Categories

Xi'an Razorlux Optoelectronic Technology Co., Ltd.

Contact Now

C-Tick Explosion Proof Led Lights Atex 11600lm Emergency Led Light

Name: CTick Explosion Proof Led Lights Atex 11600lm Emergency Led Light
Brand: Razorlux
Price: 200.00 USD

Place of Origin : Shaanxi, China

Brand Name : Razorlux

Certification : ce, C-tick, PSE, RoHS, Saa

Packaging Details : Delivery term: FOB Tianjin/Shanghai, EX-Work, CFR, CIF
3-5 days for samples after payment

Supply Ability : 1000 Piece/Pieces per Week

Price : $200.00 - $255.00/Pieces

Model Number : R EP-J-100

Color Temperature(CCT) : 5700/4000/2700K, Cool White

Input Voltage(V) : 90-305 VAC

Lamp Luminous Efficiency(lm/w) : 116, 116(lm/w)

Lifespan (hours) : 100,000

Working Time (hours) : 100,000

CRI (Ra>) : 75

Lamp Luminous Flux(lm) : 11600lm

Working Lifetime(Hour) : 100000

Working Temperature(℃) : -30 - 50

Product Name : ozorlux atex explosion proof light and led explosion proof lighting explosion proof lamp

Contact Now

Razorlux atex explosion proof light and led explosion proof lighting explosion proof lamp

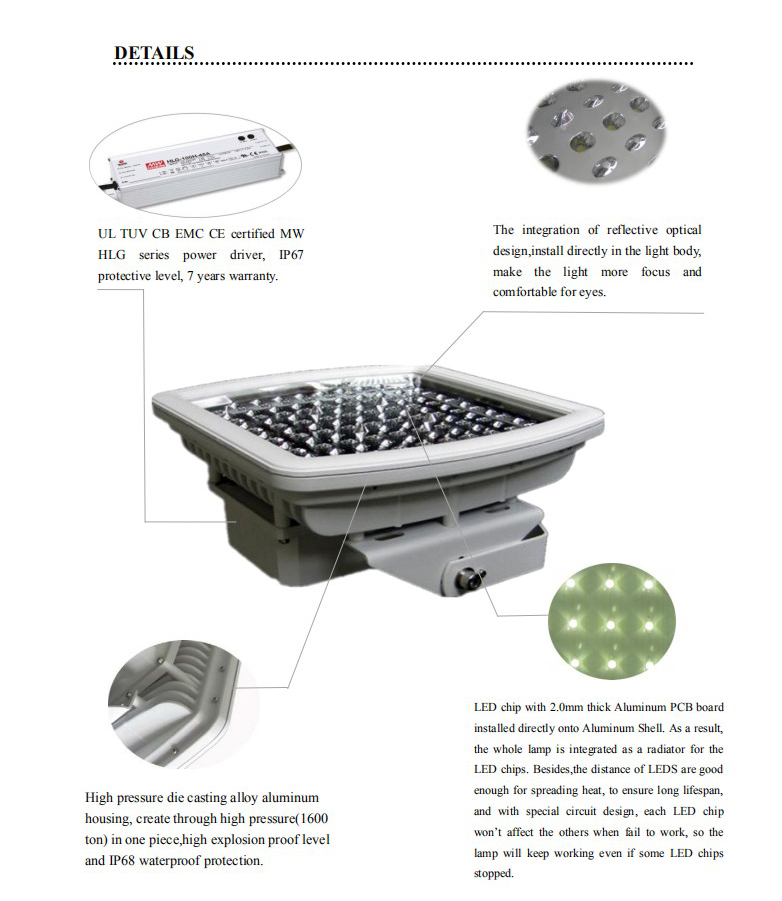

Features:

1.High Efficacy low decay 700MA LED chip
2.High heat transmit die cast housing ADC12 aluminum, patent design, IP68
3.Shock and vibration resistant tempered glass, super clear 95% light transmit rate
4.Anti-glare.Scientific optical reflector design, making the light more focus,even, comfortable for eyes
5.Original Bridgelux LED source,high luminous efficacy and long lifespan
6.MEANWELL HLG series driver, the highest level of MEANWELL driver
7.Surface treatment-Powder painted, salt resistant and chemical resistant, also hard for dust to accumulate on the surface
8.2.0mm aluminum PCB with heat index 2.5, keep LED working under cool temperature
9.Working temperature: -30ºC to 50ºC.

IP66 Waterproof Rating &5 Years Warranty

Moreover IP66 waterproof rating will provide full protection for dust and moisture area.We offer 5 years quality guarantee to ensure 100%

Easy Installation

Instand on with Easy Installation (3/4" NPT or Bracket), NO humming & NO UV or IR in the beam, green and eco-friendly.

Razorlux 60W LED high bay light bulb outputs 8400 lumens, 140LM/W, which can replace your old 240 watt MH/HPS/HID explosion proof lighting fixtures perfectly

Wide Applications

Razorlux LED explosion proof light is suitable for UL844 Class I Division 2 groups A,B,C,D.Various inflammable and explosive places,

mainly used in railway, electric power, metallurgy, petroleum, petrochemical, chemical, steel, aviation, ship and

each efficient lighting in factory, workshop, warehouse, station, large facility, venue and other place.

ITEM NO.	RLEP-J40	RLEP-J100	RLEP-J200
TOTAL POWER	30w	100w	185w
Replace HPS	150w	300-350w	700-1000w
Dimension	200200270mm	300300175mm	400400185
Weight	4KG	7.5KG	12KG
Reflector/ wide angle	120	wide angle	wide angle
Nominal lumens	3480lm	11600lm	20880lm
Driver Current	350mA
# OF LEDS	24	84	156
System Efficacy	116 LM/W
Light Color option	5700/4000/2700K
Materia	Die Cast Aluminum
Wide AC input	90-305 VAC
Power Factor	0.98
Total Harmonic Distortion	< 10%
Surge protection	IEC/EN 61000-4-5
Operation temp	-30 ºC to +50 ºC
IP class	68
Rated Life	100,000+ hrs
Warranty	5 years
Certificate	ROHS CE DLC ATEX SAA PSE C-TICK

Application:

1. Suitable for gas station, petroleum and chemical industries, coal mine, military, airport, warehouse, marine etc.
2. Zone1 & Zone2 gaseous environment, and Zone21 & Zone22 dust environment.
3. Class I Division 2 Group A, B, C, D
